Mark-10 Cap Torque Tester Series TT01 Model MTT01-100 Made in USA - $1,200 (Xenia)
Lower Bellbrook Rd near Washington Mill Rd
QR Code Link to This Post
The torque tester is in perfect working condition and is in mint condition.
Made in USA
Located in Xenia, Ohio 45385
This includes the following:

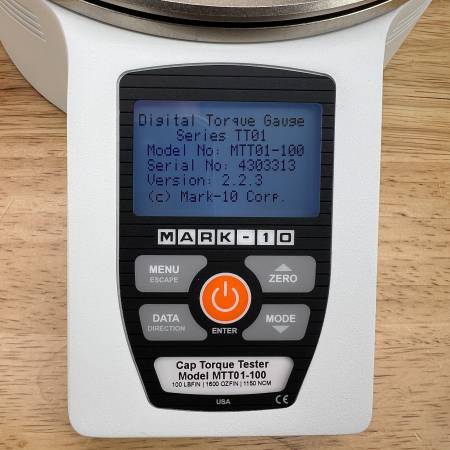

Mark-10 Cap Torque Tester
4 Gripping Posts
USB Cable
AC Power Adapter
Quick Start Guide
MESUR Software - you download it directly from Mark-10
Product Description
The CAP-TT01-100 Cap Torque Tester 100 lb-in / 1150 N-cm Capacity, MTT01-100 is designed to measure application and removal torque of bottle caps up to 100 lbFin (11.5 Nm). Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments. Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. The CAP-TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration. CAP-TT01 testers include MESUR™ Lite data acquisition software. MESUR Lite tabulates continuous or single point data. Data stored in the CAP-TT01's memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
Product Features
Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes
Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
Password protection prevents unauthorized changes
High-speed 7,000 Hz sampling rate accurately captures peak torque values
5 selectable units of measurement
USB, RS-232, Mitutoyo, and analog outputs
1,000-point data memory with statistics and outputs
Programmable set point indicators and outputs for pass/ fail determination
Configurable audio alarms and key tones
MESUR Lite data collection software included
Measures container diameters from 0.5" to 7.5" (12.7-190 mm)
Includes NIST Traceable Calibration Cert. A long form cert with data is optionally available
First & second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures
Product Specifications
Accuracy =-0.3% of full scale
Sampling rate 7,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery Life Backlight on - up to 7 hours of continuous use
Measurement units ozFin, lbFin, lbFft, Nm, Ncm
Outputs USB / RS-232 - Configurable up to 115,200 baud.
Configurable Settings Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe overload 150% of full scale (display shows “OVER” at 110% and above)
Weight 8.4 lb (3.8 kg)
Included items Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user’s guide), and NIST-traceable certificate of calibration with data.
Warranty 3 years (see individual statement for further details)
Container Diameter 0.5" to 7.5" (12.7-190 mm)
